GAS STATION LED CANOPY LIGHT

GAS STATION LED CANOPY LIGHT

The FGE-CLE Series Gas Station LED Canopy Light is designed for gas stations, parking garages, driveways, gyms, and other covered commercial or industrial spaces requiring reliable, uniform illumination.

The FGE-CLE Series Gas Station LED Canopy Light is designed for gas stations, parking garages, driveways, gyms, and other covered commercial or industrial spaces requiring reliable, uniform illumination.

Gallery image 1
Thumbnail 1
Thumbnail 2
Gallery image 1
Thumbnail 1
Thumbnail 2
Gallery image 1
Thumbnail 1
Thumbnail 2

FEATURES

Wattage Selectable

Multi-wattage options in a single fixture for flexible applications and reduced inventory.

CCTS Tunable

Adjustable colortemperature to suit diverse environments.

High Efficacy & Energy Saving

Up to 150 lm/W, reducing energy consumption by over 60% compared with HID fixtures.

Smart control Ready

Compatible with 0-10V / DALI dimming, optional microwave/infrared sensor, and emergency kit.

Reliable Warranty

5 / 7 / 10 Years Warranty Options.

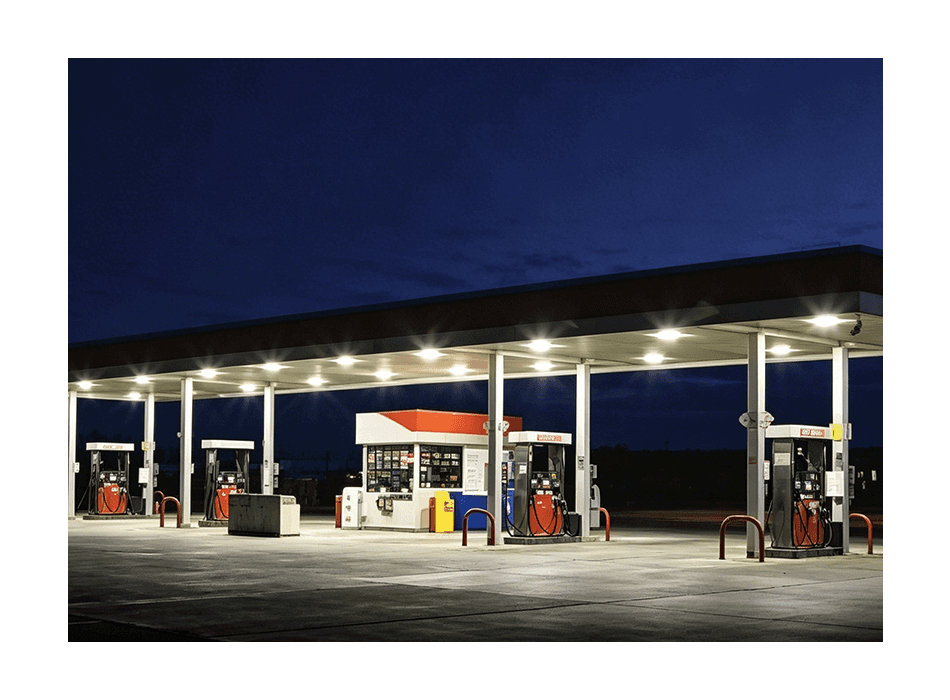

CLE gas station LED canopy light application banner, night view of gas station, text Easy Installation and Maintenance

Easy Installation and Maintenance

Reduce installation time and maintenance labor, effectively lowering overall operational costs.

CLE gas station LED canopy light application banner, night view of gas station, text Easy Installation and Maintenance

Easy Installation and Maintenance

Reduce installation time and maintenance labor, effectively lowering overall operational costs.

CLE gas station LED canopy light application banner, night view of gas station, text Easy Installation and Maintenance

Easy Installation and Maintenance

Reduce installation time and maintenance labor, effectively lowering overall operational costs.

TECHNICAL PARAMETERS

Product Model

CLE-150W

CLE-150W-TCP

Wattage Selectable

150W/130W/100W

150W/130W/100W

Input Voltage

AC120-277V

AC120-277V

Luminous Efficacy

150lm/W

150lm/W

Luminous Flux

22500lm/19500lm/15000lm

22500lm/19500lm/15000lm

CCT

5000K

4000K/5000K/5700K Selectable

CRI

Ra>80

Ra>80

Beam Angle

120°

120°

Ingress Protection

IP65

IP65

Impact Resistance

IK08

IK08

Net Weight

4.15kg

4.15kg

Dimensions

385x385x83.1mm

385x385x83.1mm

IES

FGE-CLE-150W50K-D.ies

CLE gas station LED canopy light luminous intensity distribution diagram, 120° beam angle polar photometric graph
CLE gas station LED canopy light illuminance at a distance graph, 120° beam angle lighting range data chart
CLE gas station LED canopy light iso-illuminance iso-lux contour diagram, mounting height 10m, 120° beam angle
